Checking a LOD set in a crowd

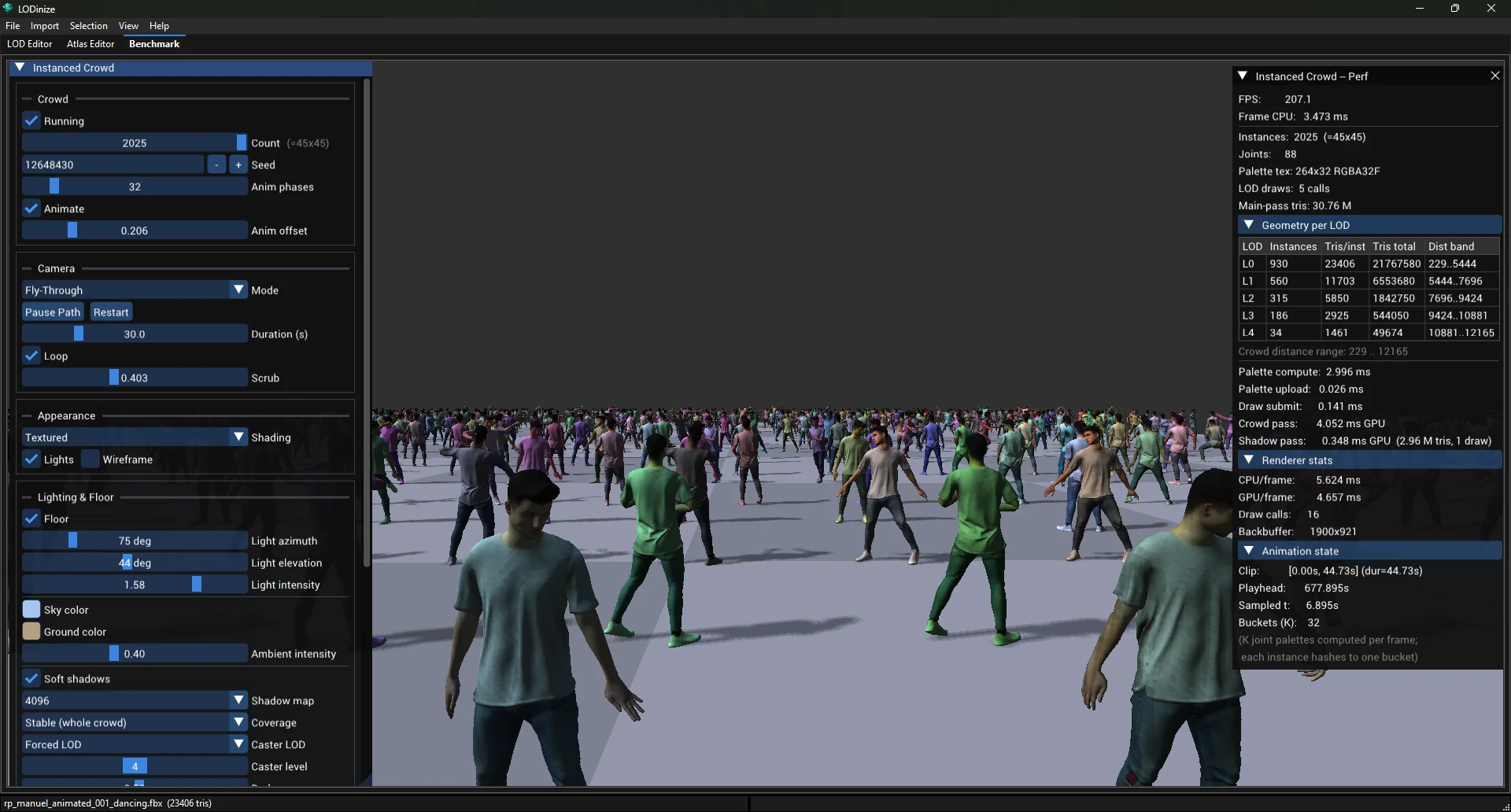

Example: once the LODs look right in the LOD Editor, the Benchmark tab shows them in use — many animated instances, each drawing the level that fits its distance.

1. Make the Benchmark the only 3D view. If the Atlas Editor is docked beside the LOD Editor, its view keeps rendering and lowers the measured frame rate. Keep the tabs in one row and select Benchmark.
2. Start the crowd. Tick Running. The defaults show 256 instances (16 × 16), textured, with soft shadows, while the camera flies through the crowd. With solid shading and no shadows the sample character ran at about 590 FPS.

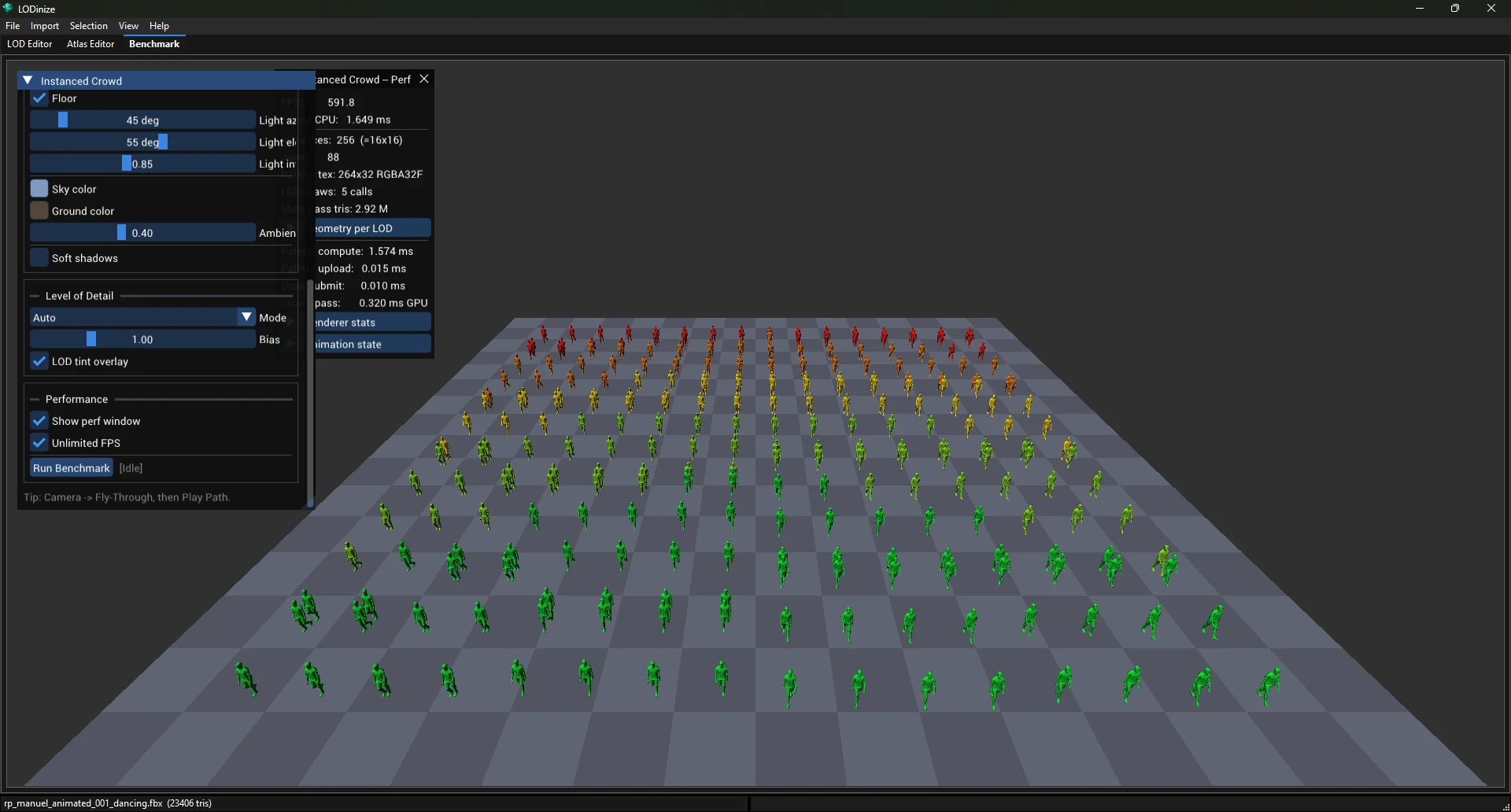

3. See which levels are used. Turn on LOD tint overlay: near instances use the detailed levels, far ones the coarse ones. The Perf window lists instances and triangles per level.



4. Load it up. Drag Count to its end (2 025 instances) and tick Unlimited FPS. Textured shading, Soft shadows and the Fly-Through camera are already on by default.

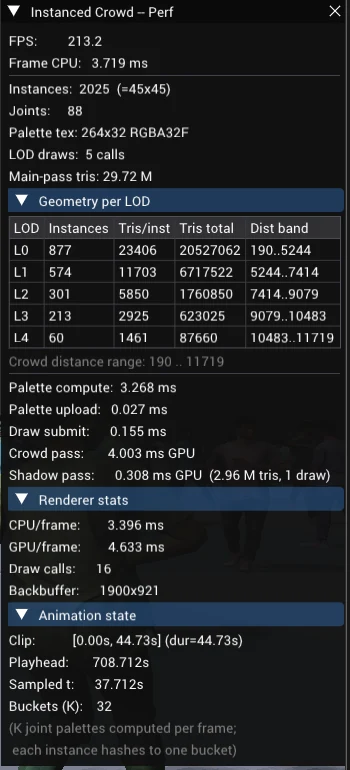

5. Read the numbers. In the example below: about 207 FPS with 30.8 million triangles in the main pass; with the camera inside the crowd, 1 805 of the 2 025 instances used LOD 0–2.



An example setting: cheaper shadows

Shadows are seen at low resolution, so the geometry that casts them does not need to be detailed. In the example, the instances used Auto LOD for drawing, while the shadow casters were set to Forced LOD with level 4 everywhere (shadow map 4096, coverage "Stable (whole crowd)"). The shadow pass then took about 0.3 ms for the whole crowd. The defaults cast from the same LOD 4 but use "Focused (crisp close-ups)" coverage, for sharper shadows near the camera.
