Troubleshooting

Things that commonly surprise new users, and what to do about them.

On this page

Loading files

SymptomWhat to do
Play does nothing in the Load Mesh / Load Animation preview; the pose box says Bind pose. Click the Play button (▶) on the animation's row in the File Info table, or click the row first and then press Play.
The texture row in File Info says not found.Its i button lists every place LODinize searched. Put the image in one of them, or use Import > Load Texture to choose the image.
The preview is gray.Turn on texturing in the preview toolbar (first button).
A frame number typed into the preview's Frame box is not applied.Press Tab after typing.
Load Animation reports joints that do not match.Try the other Match by option (Normalized names / Hierarchy), and compare the preview on both meshes before loading.

Viewing

SymptomWhat to do
The shading box says Textured but the mesh is gray.Turn on Texturing in that viewport's toolbar.
The mouse wheel zooms too far at once.Use one notch at a time near the mesh, or lower Zoom sensitivity in Settings > Navigation.
The model is off-center.Right-drag to pan, or use Fit to window.
I docked the Atlas Editor beside the LOD Editor and want the single row of tabs back. Restarting LODinize restores the default layout.
Appearance or graphics settings have no effect.They apply after restarting LODinize.

Timeline and refinement

SymptomWhat to do
A newly loaded animation does not appear in the timeline.Tick it in the Clips list (new clips arrive unticked), or pick it in the Clip dropdown.
After adding an animation, refining did not improve its poses as expected.Run Generate LODs again with the clip ticked, then refine. Refinement picks frames from what the last Generate measured.
The maximum error in the legend changes when I zoom the timeline.The legend shows the maximum of the visible part. Zoom out fully (fit) to read the overall maximum.
The curve always reaches the top, even after an improvement.The vertical axis rescales to the highest value. Compare the numbers in the legend, or lock the vertical scale (the lock button above the timeline).
Pressing Refine again gives the same result.That is expected: with the same settings the result is the same. Change the frame source, K, the budget or the marked ranges to explore.
The error jumped up after Generate LODs.Generating replaces a refined LOD set with a plain one. Refine again.
The first frame of a clip shows zero error.Many clips start in the bind pose, which the LODs are built from.
A level shows ~ before its triangle count and - as its error.It is not generated yet, or its target changed. Turn on Auto-generate or click Generate LODs.
A level is marked LOD n *.It was changed after Refine with animation, so it was rebuilt without refinement. Refine again if that level matters.
The preset's name ends with *.The LOD levels or options no longer match the saved preset. Use Save preset to update it, or Save as new preset.

Selection and masks

SymptomWhat to do
My selection disappeared.A click on empty atlas space clears it, and orbiting the camera may too. Frame the view first, then select.
Magenta, orange or teal highlights stay on the mesh.Those are hover highlights; move the pointer off the mesh and the atlas. Colors: Highlight colors.
Removing a hidden part also removed something visible.Both belong to the same island. Erase the visible part from the mask in the Paint tab and generate again — see the guide.
Masks have no effect.Check Apply mask layers in the Decimate tab and that the layer is switched on.
Ctrl+click on a LOD level does not select.On a LOD level only whole islands can be selected: switch to Selection > Island. To select single triangles, pick Original in the Atlas Editor's LOD box (or the LOD 0 row in the LOD Editor), or use the Original viewport.
Highlights do not show in the LOD viewport.By design: it stays clear for judging the result. A hovered LOD triangle is drawn over the Original viewport and in the atlas.

Atlas Editor

SymptomWhat to do
After generating LODs, the atlas still shows the old triangles.Move the pointer over the atlas view; it refreshes.
The Info panel says to run Solve texturing again.The repair belongs to the current LODs; it is reset when LODs are generated or refined.
The atlas shows a different level than I want.Its LOD box starts on Follow LOD Editor, which shows the level the LOD Editor shows. Pick Original or a LOD level in the box to keep the view on it; pick Follow LOD Editor to follow again.

Export

SymptomWhat to do
The exported character has no texture in the engine.If the export message listed texture images that were not found, put those files next to the source FBX (or in its .fbm folder) and export again. Otherwise try Copy beside the .fbx and ship the texture next to the FBX.
An animation is missing from the exported file.The export keeps the animations of the source FBX only. Animations added from other files are not included.
The character is rotated or scaled wrongly in the engine.Match Axis (Y-up / Z-up) and Units (cm / m) to your engine in the Export LODs dialog.
Export says that LOD levels were changed but are not generated yet.Click Generate LODs (or turn on Auto-generate), so the export matches the LOD Levels table.

Benchmark

SymptomWhat to do
The frame rate is lower than expected.Make sure no other 3D view is visible (for example a docked Atlas Editor) and turn on Unlimited FPS.
I cannot see all settings in the Instanced Crowd panel.It fills the height of the view; drag its scrollbar — the mouse wheel moves the camera instead.
How many instances can the crowd have?Up to 2 025 (a 45 × 45 grid): drag the Count slider to its end.

Getting help

For support and updates visit www.lodinize.com. When reporting a problem, Help > About shows your version.

Help > Check for Updates asks www.lodinize.com whether a newer version is out. If there is one, it shows what the new version brings, with buttons for the Download page and the Release notes; if not, it says you have the latest version. It needs an internet connection and runs only when you choose it. To update, close LODinize and run the new installer: it replaces the old version, and your projects and settings stay.

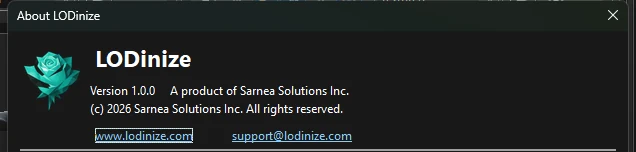

About dialog
