Settings

View > Settings. Pages are listed on the left; each has a Restore defaults button. Apply keeps the dialog open, OK applies and closes. The dialog opens on the page you viewed last.

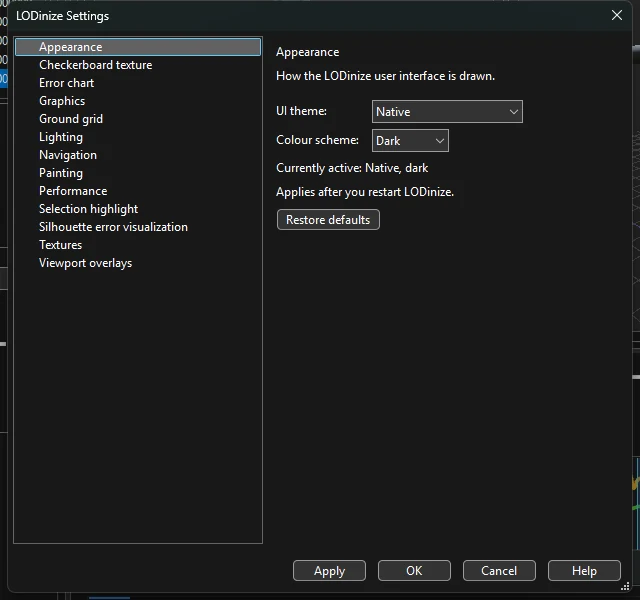

Settings dialog on the Appearance page
The Settings dialog, Appearance page.
PageWhat you can set
AppearanceUI theme (Native or a custom color scheme) and Color scheme (dark / light). Takes effect after restarting LODinize.
Checkerboard texturePattern Box size and U / V offset of the Checkerboard shading mode used to inspect UV stretching.
Error chartGap fill: how parts of the deviation timeline that are still being computed are drawn (e.g. linear interpolation).
GraphicsGraphics API used by all 3D views and the crowd renderer: Direct3D 11 (the default), another API this computer supports, or Automatic. Takes effect after restarting LODinize. Viewport frame rate: how often the viewports draw, 30 fps (the default), 60 fps or Unlimited. Takes effect at once. The animation speed does not depend on it.
Ground gridColors of major and minor lines and of the X / Z axes; Highlight world axes.
LightingViewport lighting Preset; ambient sky / ground color and intensity; Key light, Fill light and Rim light (lights the outline from behind): direction, intensity and color. Directions are relative to the camera: azimuth 0 is from the camera, 90 from the right, 180 from behind.
PaintingColors of the brush ring for Paint, Erase and Smooth, and of the mask overlay.
PerformanceWorker threads for computing the deviation timeline and texture solves (Auto leaves two cores free); Sweep sample order — in which order frames are evaluated, e.g. progressive bisection, so a rough curve appears quickly and fills in.
Selection highlightColors for hover (will add / will remove / hidden) and for selected (visible / hidden) geometry.
Silhouette error visualizationHeatmap range: the Start and End of the color scale, and Auto adjust.
TexturesResolution caps for textures: On-screen preview (every texture shown in the viewports and the Atlas Editor) and Solve / Export. Unlimited uses the source's own size; a cap never enlarges a texture.
TooltipsShow tooltips: the short explanation that appears when the pointer rests on a control. On by default; turn it off once you know the controls. The menu help in the status bar stays.
Viewport overlaysShow orientation gizmo; Draw root bone (from the world origin to the first joint).

Pages with screenshots

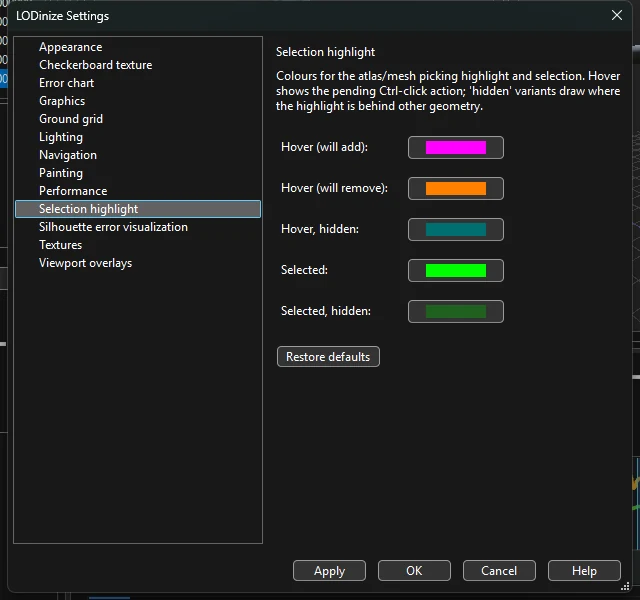

Selection highlight settings
Selection highlight.

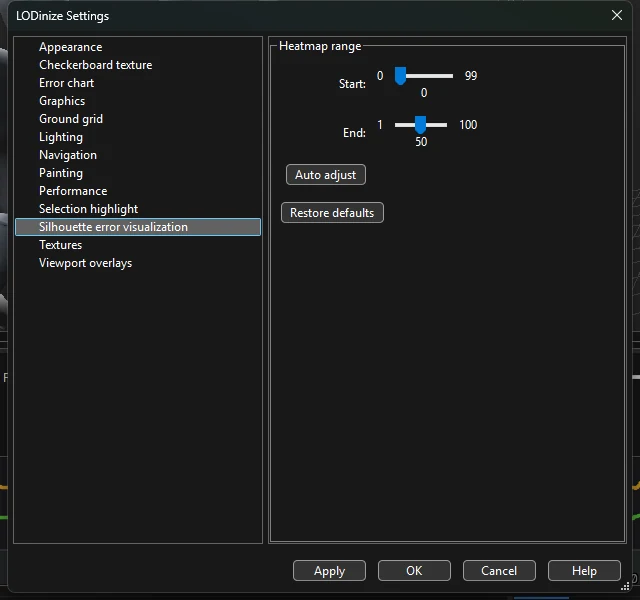

Heatmap range settings
Silhouette error visualization.

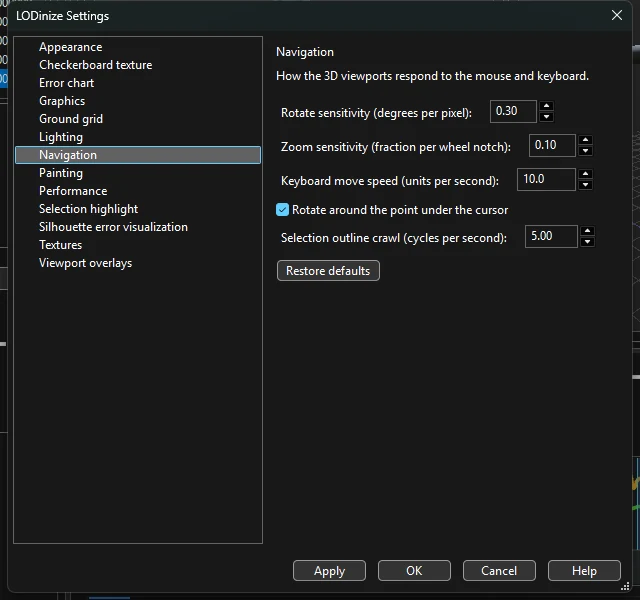

Navigation settings
Navigation.

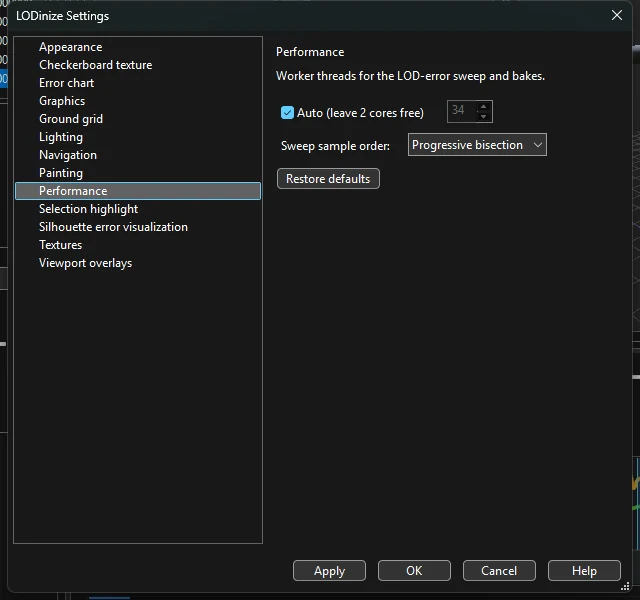

Performance settings
Performance.
Graphics settings
Graphics: the graphics API and the viewport frame rate.
