Texture atlas

The Atlas Editor shows how the character's triangles are laid out on its texture, per LOD level, and repairs the texture where simplified triangles would sample areas the original never used.

On this page

Why LODs need texture work

When triangles are merged, the outline of a UV island can move outwards. The coarser triangle then reads texture pixels just outside the original island — often empty background. In the game this shows up as wrong-colored seams on lower LODs. The Atlas Editor makes these areas visible and fills them from the surrounding texture.

The atlas view and toolbar

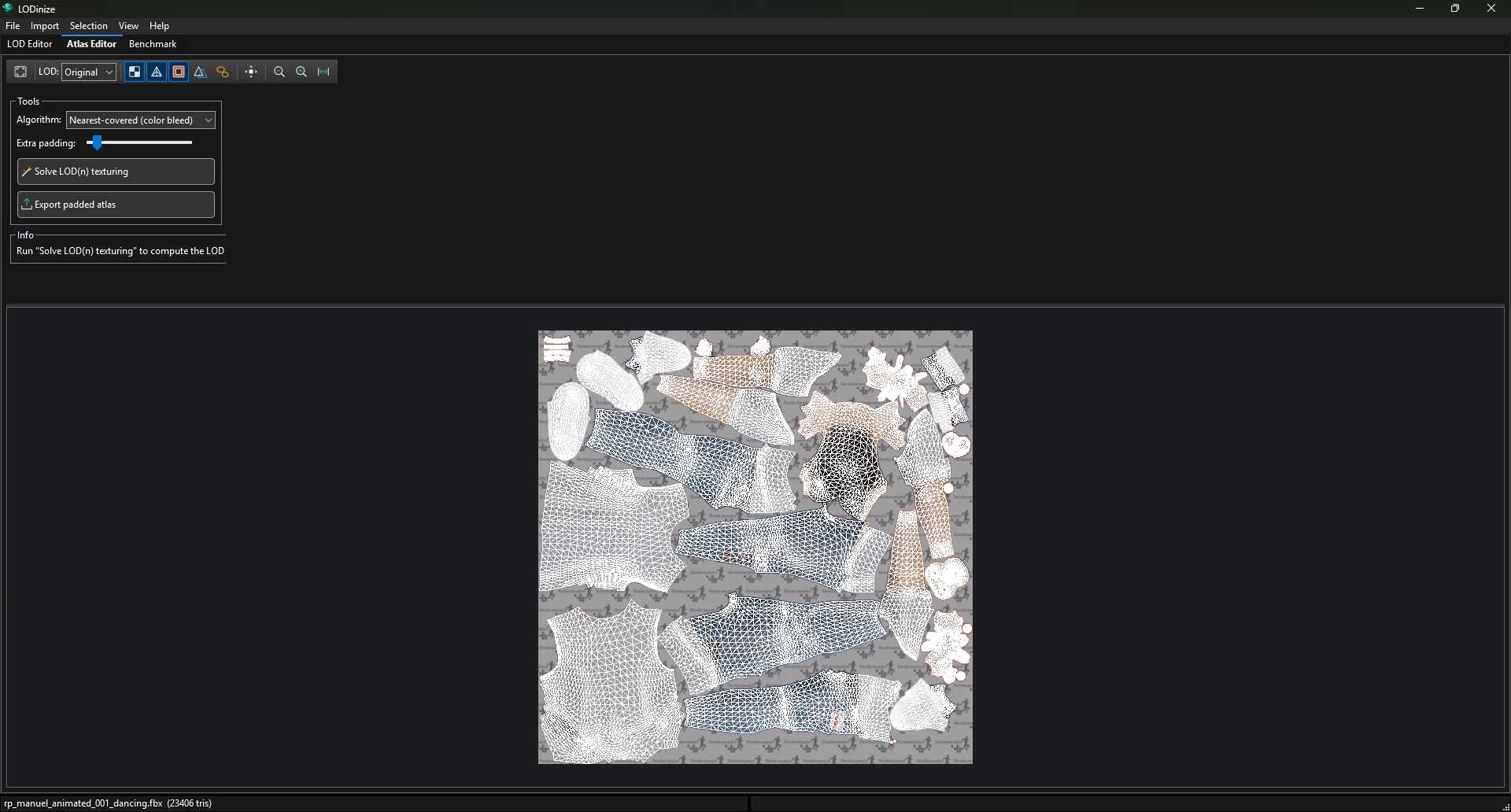

Atlas Editor showing the UV layout of LOD 4 and the Info table
The Atlas Editor following the LOD Editor (LOD 4) after Solve texturing: the Tools panel, the Info table with one column per level, and the level's UV layout over the texture.
Toolbar itemPurpose
FitFit the whole atlas into the view.
LODWhich level's UV layout to show. Follow LOD Editor (the default) shows the level the LOD Editor shows and names it, for example Follow LOD Editor (LOD 4). Original or LOD 1…n keep the view on that level until you pick Follow LOD Editor again. It only changes the view: Solve texturing always repairs every LOD.
TexturedShow the texture under the layout.
WireframeShow the triangles of the chosen level.
DifferenceHighlight texture areas used by the chosen LOD but not by the original (bright green).
LOD0 overlayDraw the original's island outlines (yellow) on top of the chosen level.
Island bordersOutline the UV islands.
PaddedShow the repaired (padded) texture instead of the original. Hold B over a view to compare it with the original.
Zoom out / Zoom inView controls. The mouse wheel zooms and dragging pans as well.

Ctrl+click in the atlas selects or deselects islands or triangles when selection is enabled. On a LOD level only whole islands can be selected (Selection > Island); the selection always belongs to the original mesh. A plain click or drag pans — see Selection & mask painting.

Pointing at a triangle of a LOD level — in the atlas or in the LOD viewport — draws that LOD triangle over the mesh in the Original viewport and highlights it in the atlas. The LOD viewport itself stays clear, so you can judge the result.

Seeing the problem: difference and contours

Difference highlighted in bright green
LOD 4 with Difference on: the bright green bands are texture the LOD samples outside the original islands.
Original and LOD island contours
With the LOD0 overlay: the yellow outline is the original island, the white one the LOD's. The gap between them falls on unpainted background.

Solve texturing

The Tools panel fills the uncovered areas of all LOD levels at once, in one texture — the texture every LOD uses when you export. It does not matter which level the atlas shows. Choose an Algorithm, optionally some Extra padding, and click Solve texturing.

The Info panel then shows a table with one column per LOD: the share of the level's texels that sampled background before and after the solve. For example, on a character with four LOD levels:

LOD1234
Before Solve0.1 %0.4 %0.9 %1.7 %
After Solve0.0 %0.0 %0.0 %0.0 %
AlgorithmHow it fillsCharacter of the result
Nearest-covered (color bleed)Extends the nearest painted pixel outwards.Covers everything, in a wider band; edges can look streaky up close.
Surface re-projection (the default)Looks up the color the original surface has at that spot.A narrow, clean band that continues the texture; Extra padding widens it.
Result of color bleed
Nearest-covered: a wide band (99 px here).
Result of surface re-projection
Surface re-projection: a narrow 8 px band.

The percentage alone does not tell the whole story — compare the two results visually at the zoom level your players will see.

Regenerating LODs resets the solve. The repair belongs to the current LODs; after Generate LODs or Refine, solve again.

Export padded atlas

Export padded atlas writes the repaired texture as an image file. To include it in the exported LODs instead, tick Use processed (padded) albedo in the Export LODs dialog. The LOD viewport can preview it with its Padded button.

Guide: Filling texture gaps on low LODs.
